About POLARIS-ETeK’s intermediate frequency induction heating equipment, do you know its components and instructions for use? Today I will give you a clear introduction to the relevant content.
Common induction heating equipment has the following three composition methods:

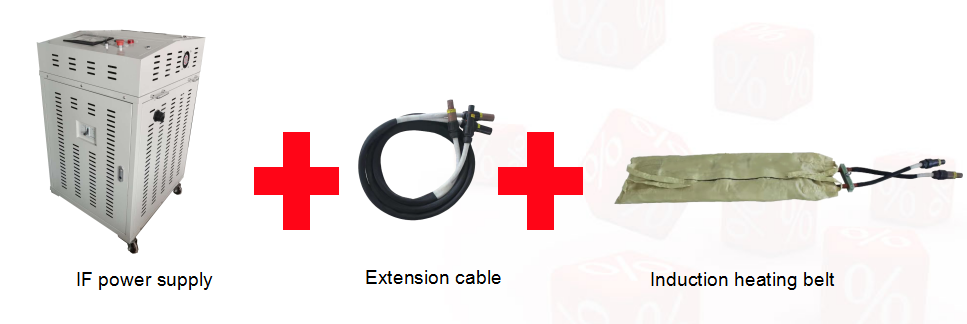

Instructions1: The whole equipment is composed of medium frequency heating power supply, extension cable, induction heating belt, high temperature electromagnetic heating wire (or optional with heating belt)
(Intermediate frequency heating equipment + heating belt)
Pic1
Application field: Induction heating belt with intermediate frequency power supply is suitable for heating workpieces within 350℃, especially suitable for welding preheating operations. It can be used for welding preheating of flat plates, cylinders, rotating bodies, pipes, valves, etc., which is convenient to use and only It can be heated by laying the heating blanket flat or wrapping it in the position to be heated.

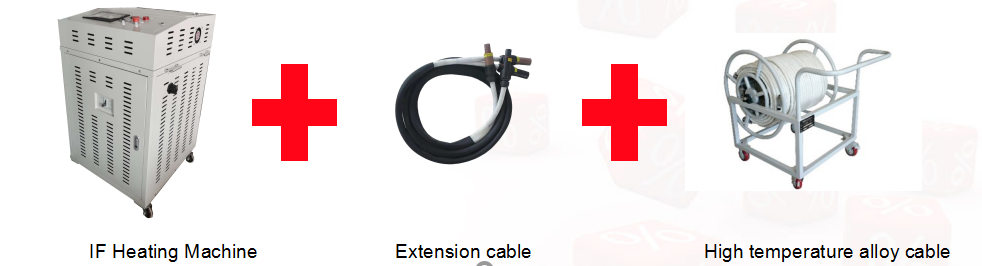

Instructions2: The whole equipment is composed of medium frequency heating power supply, extension cable, induction heating belt, high temperature electromagnetic heating wire (or optional with heating belt) (Intermediate frequency heating Machine + high temperature electromagnetic wire)
Pic2
Applicable fields: medium frequency heating equipment with high temperature alloy cables can perform heating operations within 800 ℃, generally suitable for pipelines, valves, cylinders, etc. Post-weld heat treatment of the rotating body. During the operation, the high-temperature alloy cable is wound on the heating workpiece, and the power is turned on to heat it.

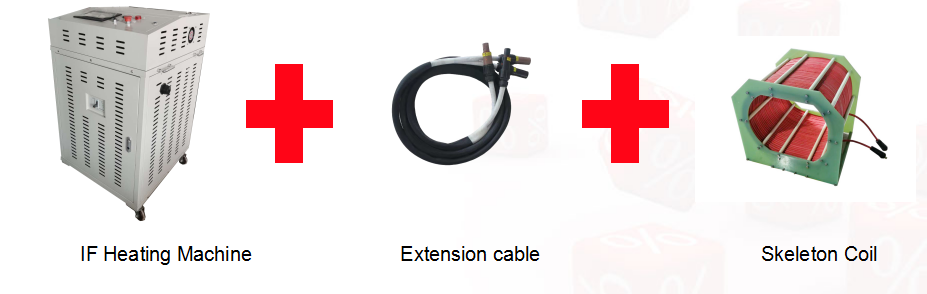

Instructions3: The whole equipment is composed of medium frequency heating power supply, extension cable, induction heating belt, high temperature electromagnetic heating wire (or optional with heating belt) (Intermediate frequency heating equipment + skeleton coil)
Pic3
Applicable fields: Intermediate frequency heating equipment with skeletal coils can perform heating operations within 350°C for products with uniform specifications and large batches, and can be used for heating of structural parts, rotating bodies and other regular-structured workpieces.

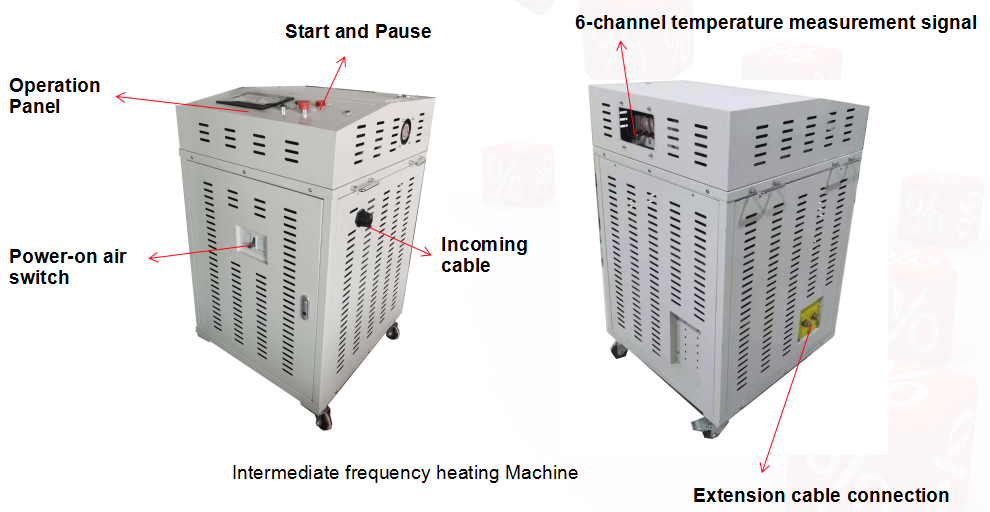

The entire heating equipment is composed of an intermediate frequency electric control cabinet, extension cables, and high temperature alloy cables (or heating belts, or skeleton coils). The device supports 6-channel temperature measurement, and the K-type thermocouple can be used to monitor the heating temperature or control the heating process.
Pic4
More News on POLARS-ETeK, Welcome to consult and leave a message.
