Now, there are three common methods for heating engineering workpieces, namely electromagnetic induction heating, ceramic sheet resistance heating, and flame heating (gas). Below, POLARIS-ETeK takes a Φ800X1000mm pipeline as an example. The conditions are: heating from room temperature to 200°C, and detailed analysis of the characteristics of the following three heating processes.
Pic1
Result analysis:
The biggest advantage of intermediate frequency heat treatment and resistance heating or flame heating is the uniformity of heating and a certain penetration depth.
Let's introduce some parameters of the intermediate frequency heating equipment, the advantages of the equipment, and the technical advantages of the equipment:

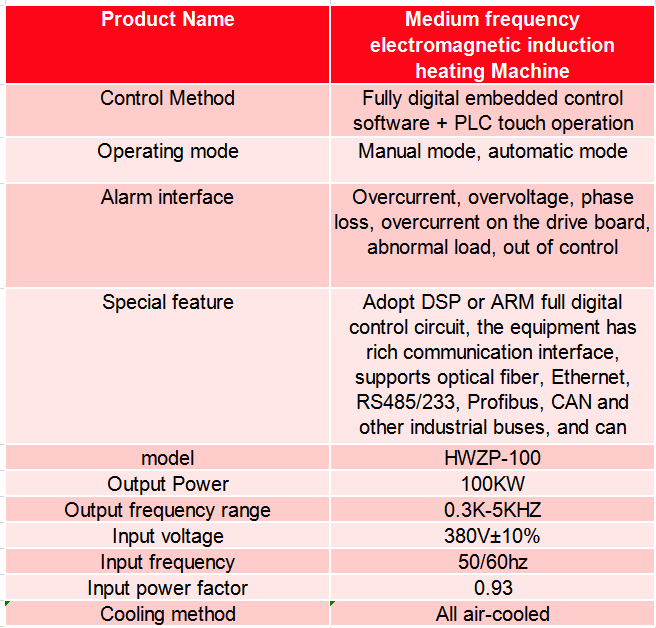

1.Equipment parameters
Pic2
2.Functional advantages of the equipment
1. The product has a constant power factor above 0.95 during operation, and the product's main circuit design has reliable short-circuit/open-circuit resistance and grounding characteristics.
2. The product provides a variety of control methods and options, you can use current control, temperature control, program control (multi-segment current or temperature combined control) and other modulation methods, the operation control method can choose HMI operation screen control, external hard wire Contact control, field bus control mode and network communication control mode, etc.
3. The product adopts strict product safety testing. The output transformer adopts double insulation, shell grounding protection, and also has safety protection measures such as on-line monitoring of leakage current. The product conforms to CE safety certification.
4. The product has a self-checking function. The alarm system prompts solutions while giving alarm information. The massive alarm history storage and online diagnosis system provide very convenient conditions for equipment maintenance. The localized production base provides customers with abundant spare parts guarantee and after-sales service.
5. The product is an embedded product with a combination of software and hardware, which provides extremely favorable conditions for product updates and upgrades, and software customization development can be carried out according to the special needs of customers.
6. Through the data interface, induction heating equipment can be directly incorporated into industrial buses such as RS485, Profibus, CANbus, etc., to realize functions such as data transmission, data sharing, remote control, and multi-machine cooperation
Pic3
Pic4
3.Technical advantages of the equipment
Energy-saving and high-efficiency technology leader
Electromagnetic induction heating is internationally recognized as the heating method with the highest conversion efficiency of electric heat.
Novel structure and unique performance
The electromagnetic heater can be reasonably arranged on the workpiece in sections, and the workpiece generates uniform skin effect heat. The two cooperate with each other and supplement together, so that the temperature distribution is uniform and moderate, the heat efficiency is high, and the loss is small.
Pic5
Complete Computer Control Function
The variable frequency power supply control cabinet adopts full digital automatic control technology with high power factor and stable performance. It has dynamic and arbitrary adjustment settings of on-site power, temperature and frequency, soft start and soft stop functions, and failures such as phase loss, overcurrent, overvoltage, short circuit, etc. Automatically protect and recognize the display.
Reliable quality and durable
Superior structural design, unique high-performance materials, advanced manufacturing technology, and strict testing methods ensure performance quality and service life.
Easy to install and easy to use
The installation of the equipment does not require other auxiliary equipment, ordinary trucks can be transported, on-site operations only need to be connected to three-phase electricity, the electromagnetic wire is wound on the workpiece to be heated, and the temperature curve is set to start heating.
On-site process of intermediate Frequency heating Machine
Pic6
Pic7
More News on POLARS-ETeK, Welcome to consult and leave a message.
