Intelligent Air-Cooled Intermediate Frequency MachinePosition：Home>>PRODUCTS>>Intelligent Air-Cooled Intermediate Frequency Machine

Post Weld heat treatment Machine

Equipment Power: 100kw

Equipment Frequency: 2-5KHZ

Control Method: PLC Intelligent Control

Intelligent Control Features: 6-way temperature control, temperature curve can be drawn, temperature curve can be edited for heating

Delivery Time: 3-20 days after confirming order,detail delivery date should be decided according to production season,order quantity and destination.

Warranty: 12 Months

Hotline

Online Inquiry

Equipment introduction

Post Weld Heat Treatment Machine

Features of Post Weld Heat Treatment Machine:

1).Using PLC as the control center of the power supply is more intelligent;
2).The equipment has manual mode, automatic mode, temperature control mode and other heating modes to meet different heating needs;
3).The device can collect 6 channels of temperature data by default, and can switch one channel as the control point at will, or the average value control method can be used;
4).The device can edit the temperature curve, and after setting the temperature curve, it can be heated and controlled according to the program;
5).The device has a temperature curve display and recording function, and the temperature curve can be passed through the SD card；

Technical Parameters:

Product Name	Post Weld Heat Treatment Machine
Power	40kw	80kw	100kw	120kw	200kw
Frequency	2-10khz	2-5khz	2-5khz	2-5khz	2-5khz
Temperature Control	The device collects 6 channels of temperature data by default, with any one of them optionally selected as a control point. Average control can also be used. The device allows for editing temperature curves, which can then be programmed to run according to a pre-set program. The device electronically records temperature curves, and a paper recorder is also available for printing.

Application of Induction Heating Machine:

Applicable Processes: Preheating before welding, dehydrogenation after welding, stress relief heat treatment, shrink-fitting and heat removal

Application Industries: Nuclear power, military industry, offshore engineering, chemical industry, power construction, pressure vessels, power plant maintenance, construction machinery, scientific research, etc.

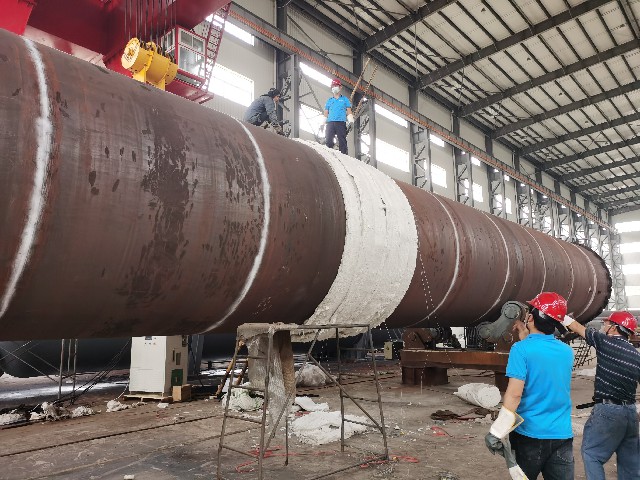

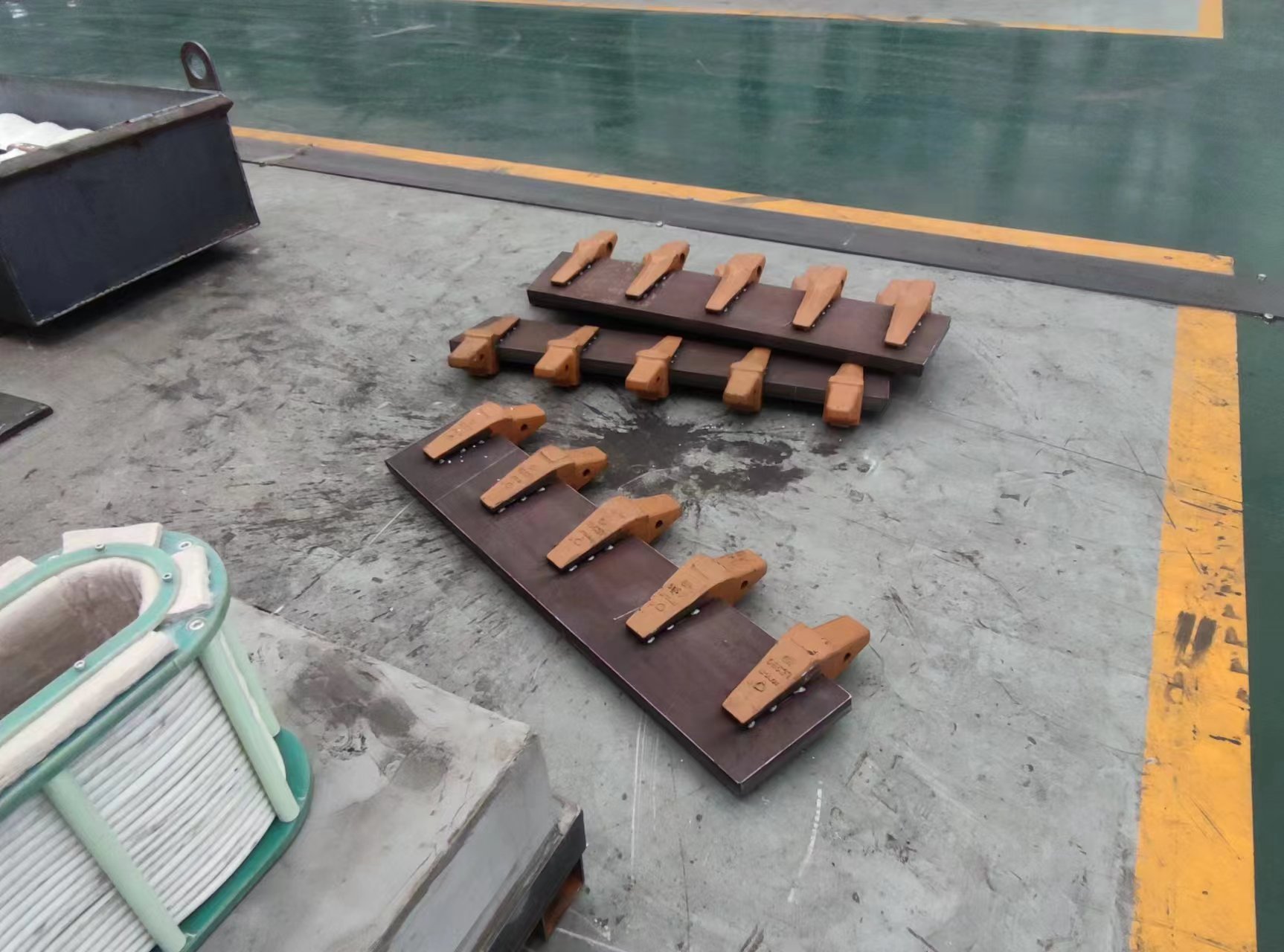

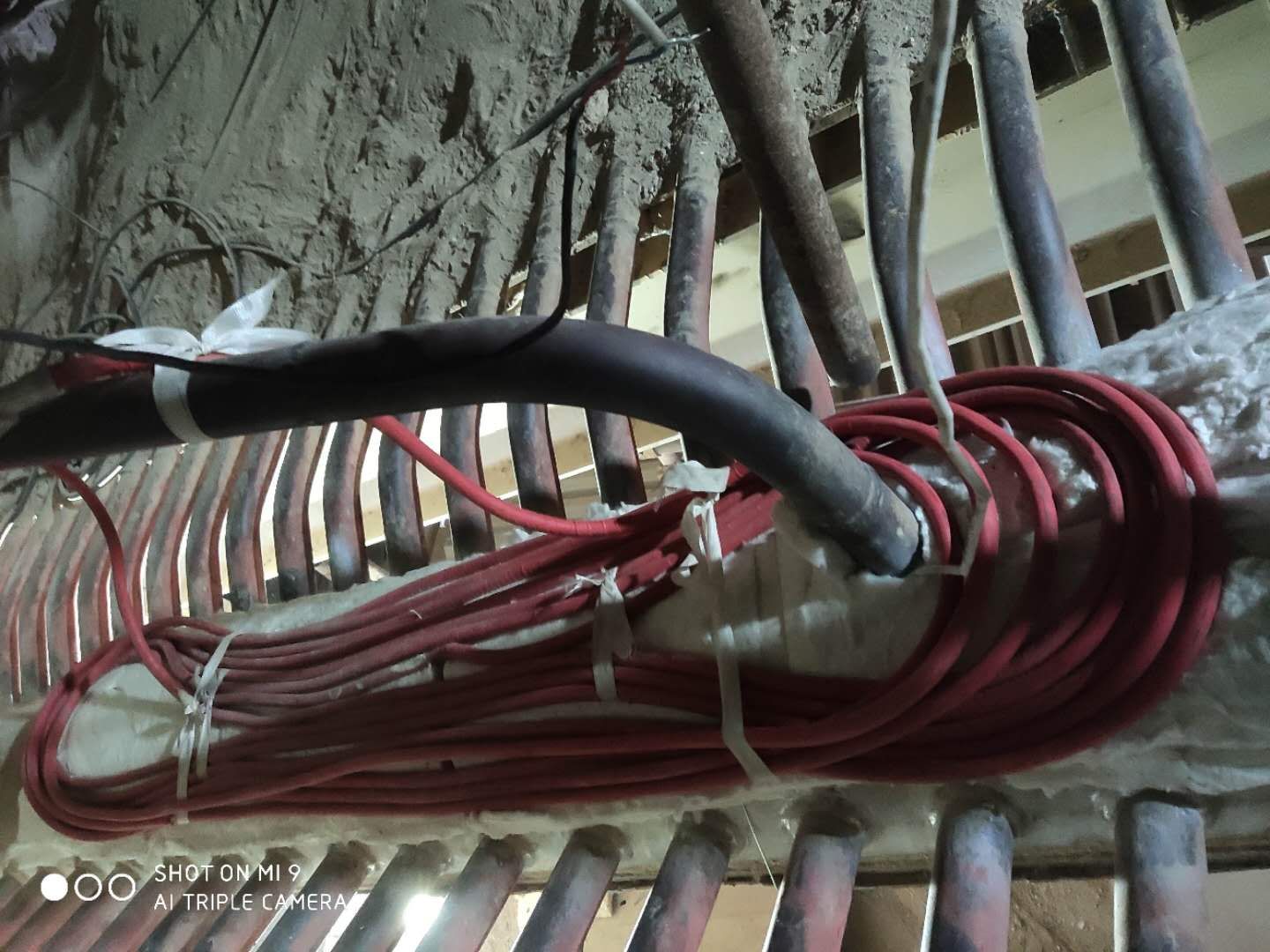

Case:
